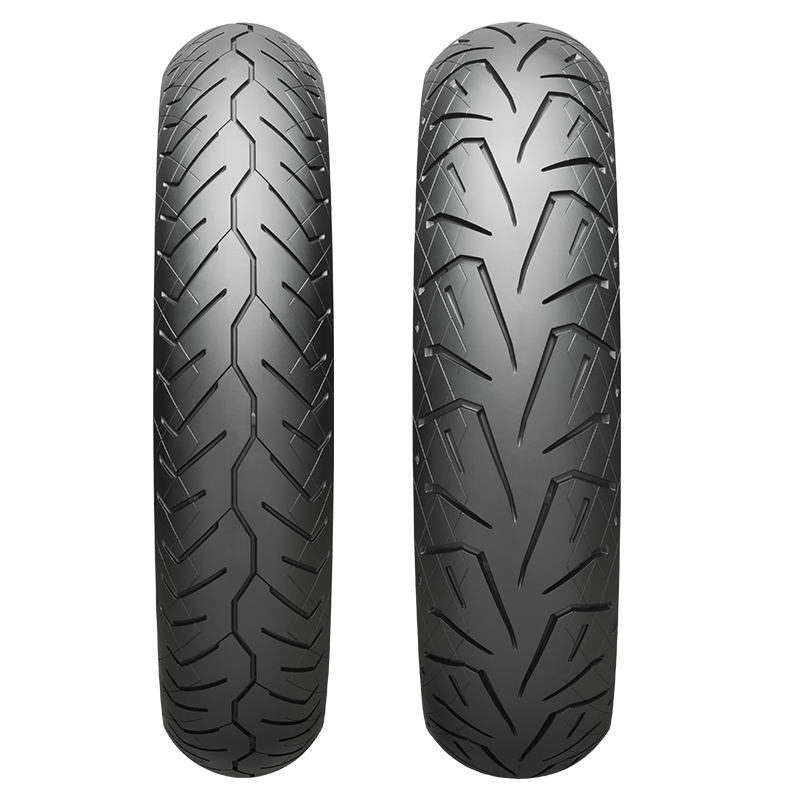

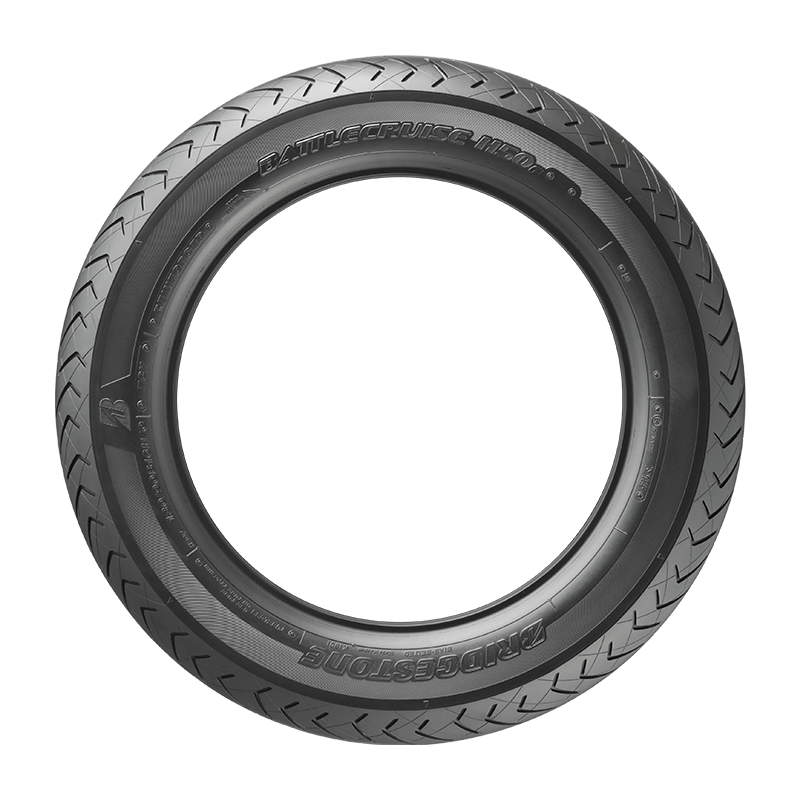

The BATTLECRUISE H50 : The comfort in cruising on American V-Twins, made available with the introduction of a more extensive size line up, broadening the world of American riding.

Cruising in relaxed style on big displacement American cruisers.
This is where the BATTLECRUISE H50 promises to lead you.
“Long Life”, “Smooth Handling” and “Comfort Riding” are the key features that H50 offers.
he rear tire can claim a long life as much as 2.7 times of the EXEDRA MAX.
Its handling capabilities allow even bikes of nearly 300kg to turn smoothly at both low and high speeds, minimizing fall-in characteristics in turns.
By reducing the transmissions of vibration of V-Twins, it provides a comfortable ride and helps to prevent fatigue, even when touring over long distances.
With the BATTLECRUISE H50, designed specially for big-displacement American cruisers, we want you to savor the laid-back cruising of the V-Twin.

Recommended for
●Riders with American OEM cruisers
●Riders wanting smooth control of heavier American cruisers.
●Riders who enjoy long-distance touring, high-speed cruising on cruisers.

FrontBATTLECRUISE H50

Tire Size Standard Rim(inch) Appr. Rim(inch) OD(mm) TW(mm) Remarks
130/90B16 M/C 67H TL 3.00 2.50~3.50 638 129
“USE TUBE ON TUBE TYPE RIM” stamped on t…
“USE TUBE ON TUBE TYPE RIM” stamped on the sidewall of the tire.
130/90B16 M/C 73H RFD TL 3.00 2.50~3.50 639 130
“USE TUBE ON TUBE TYPE RIM” stamped on t…
“USE TUBE ON TUBE TYPE RIM” stamped on the sidewall of the tire.
NEW100/80-17 M/C 52H TL 2.50 2.15~2.75 595 103
“USE TUBE ON TUBE TYPE RIM” stamped on t…
“USE TUBE ON TUBE TYPE RIM” stamped on the sidewall of the tire.
130/80B17 M/C 65H TL 3.00 2.50~3.50 641 127

140/75R17 M/C 67V TL 3.50 3.50~4.25 644 137

120/70ZR18 M/C (59W) TL 3.50 3.50~3.75 630 119

130/70B18 M/C 63H TL 3.50 3.00~4.00 640 128

100/90B19 M/C 57H TL 2.50 2.15~2.75 667 100
“USE TUBE ON TUBE TYPE RIM” stamped on t…
“USE TUBE ON TUBE TYPE RIM” stamped on the sidewall of the tire.
120/70ZR19 M/C (60W) TL 3.50 3.00~3.75 652 121

130/60B19 M/C 61H TL 3.50 3.00~4.00 639 128

80/90-21 M/C 54H RFD TL 1.85 1.60~2.15 677 80
“USE TUBE ON TUBE TYPE RIM” stamped on t…
“USE TUBE ON TUBE TYPE RIM” stamped on the sidewall of the tire.
130/60B21 M/C 63H TL 3.50 3.00~4.00 689 127

RearBATTLECRUISE H50

Tire Size Standard Rim(inch) Appr. Rim(inch) OD(mm) TW(mm) Remarks
NEW140/75R15 M/C 65H TL 3.50 3.50~4.25

130/90B16 M/C 73H RFD TL 3.00 2.50~3.50 639 130
“USE TUBE ON TUBE TYPE RIM” stamped on t…
“USE TUBE ON TUBE TYPE RIM” stamped on the sidewall of the tire.
140/90B16 M/C 77H RFD TL 3.50 2.75~3.75 660 144
“USE TUBE ON TUBE TYPE RIM” stamped on t…
“USE TUBE ON TUBE TYPE RIM” stamped on the sidewall of the tire.
150/80B16 M/C 77H RFD TL 3.50 3.00~4.25 647 151
“USE TUBE ON TUBE TYPE RIM” stamped on t…
“USE TUBE ON TUBE TYPE RIM” stamped on the sidewall of the tire.
180/65B16 M/C 81H RFD TL 5.00 4.25~5.50 639 180
“USE TUBE ON TUBE TYPE RIM” stamped on t…
“USE TUBE ON TUBE TYPE RIM” stamped on the sidewall of the tire.
180/70B16 M/C 77H TL 5.00 4.25~5.50 657 184

150/60ZR17 M/C (66W) TL 4.00 4.00~4.50 611 148

160/70B17 M/C 73V TL 4.50 3.75~5.00 656 158
“USE TUBE ON TUBE TYPE RIM” stamped on t…
“USE TUBE ON TUBE TYPE RIM” stamped on the sidewall of the tire.
180/60B17 M/C 75V TL 5.00 4.25~5.50 648 184
“USE TUBE ON TUBE TYPE RIM” stamped on t…
“USE TUBE ON TUBE TYPE RIM” stamped on the sidewall of the tire.
200/55R17 M/C 78V TL 6.25 6.00~6.50 655 196

180/55B18 M/C 80H RFD TL 5.50 5.00~6.00 662 178

240/40R18 M/C 79V TL 8.50 8.00~9.00 649 241

*Do not use with MTM rims, CM contour rims or WM rims manufactured before 1977.

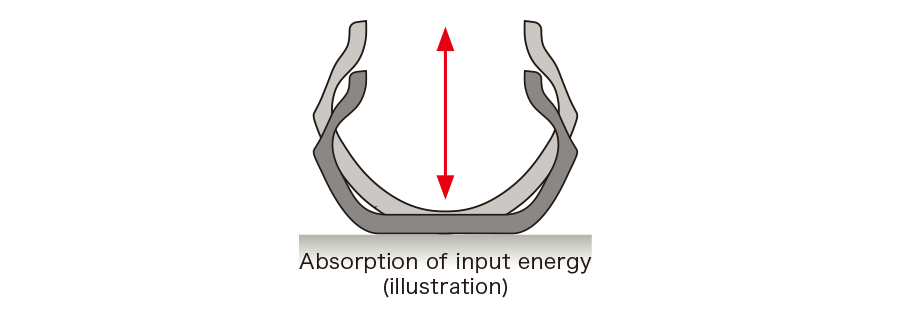

■ Comfort with less fatigue

By optimizing rigidity distribution (verticalspring rate), the front tire absorbs energy

inputs from the road surface while maintaining rigidity, reducing vibration through the handlebars.

Imperfections on the road surface are well damped. You will realize a real comfort

touring with reduced fatigue even at longdistance cruising..

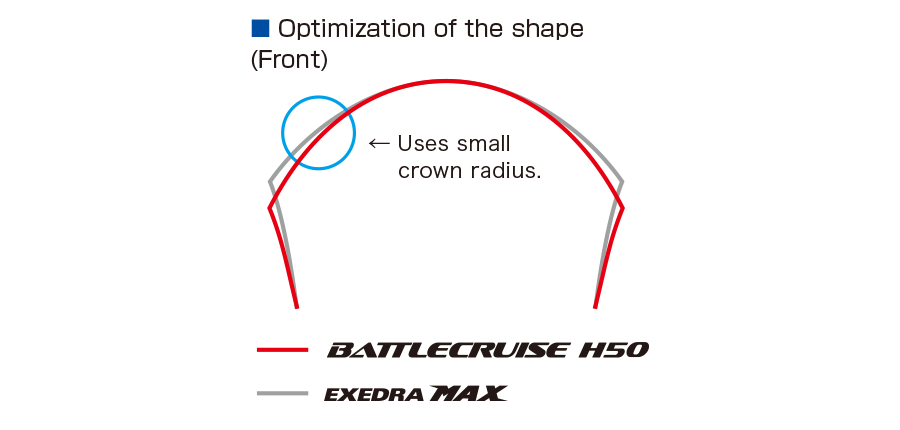

■ Smooth handling

Using ULTIMAT EYE™ , the contact properties were analyzed to optimize the tire shape and structure accordingly.

This resulted in the generation of significant camber thrust, improving cornering grip and enhancing handling performance.

The large and uniform contact properties secures high stability in any lean angle.

Even on heavy machines that do not turn in quickly, control becomes easier and more enjoyable for the rider.

Manufacturer

HARLEY DAVIDSON

1690cc
FXDF FAT BOB (2017-)
  • Front130/90B16 M/C 67H TL 〈MCS01345〉
  • Rear180/70B16 M/C 77H TL 〈MCS01404〉
FLHRC ROAD KING CLASSIC (2015-)
  • Front130/90B16 M/C 73H RFD TL 〈MCS01339〉
  • Rear180/65B16 M/C 81H RFD TL 〈MCS01401〉
FLSTC HERITAGE SOFTAIL CLASSIC (2016-)
  • Front130/90B16 M/C 73H RFD TL 〈MCS01339〉
  • Rear140/90B16 M/C 77H RFD TL 〈MCS01411〉
FLS SOFTAIL SLIM (2016-)
  • Front130/90B16 M/C 73H RFD TL 〈MCS01339〉
  • Rear140/90B16 M/C 77H RFD TL 〈MCS01411〉
FLSTN SOFTAIL DELUXE (2017-)
  • Front130/90B16 M/C 73H RFD TL 〈MCS01339〉
  • Rear140/90B16 M/C 77H RFD TL 〈MCS01411〉
FLHTCUL TC ELECTRAGLIDE ULTRA CLASSIC LOW (2015-)
  • Front130/80B17 M/C 65H TL 〈MCS01397〉
  • Rear180/65B16 M/C 81H RFD TL 〈MCS01401〉
FLHTK ULTRA Limited/FLHTK TC ULTRALimited
  • Front130/80B17 M/C 65H TL 〈MCS01397〉
  • Rear180/65B16 M/C 81H RFD TL 〈MCS01401〉
FLHTKL TC ULTRA Limited LOW (2015-)
  • Front130/80B17 M/C 65H TL 〈MCS01397〉
  • Rear180/65B16 M/C 81H RFD TL 〈MCS01401〉
FLHTCU TC ELECTRAGLIDE ULTRA CLASSIC (2015-)
  • Front130/80B17 M/C 65H TL 〈MCS01397〉
  • Rear180/65B16 M/C 81H RFD TL 〈MCS01401〉
FLTRU ROAD GLIDE SPECIAL ULTRA (2016-)
  • Front130/80B17 M/C 65H TL 〈MCS01397〉
  • Rear180/65B16 M/C 81H RFD TL 〈MCS01401〉
FLSTF FAT BOY/FLSTFB FAT BOYLOW ( (2016-)
  • Front140/75R17 M/C 67V TL 〈MCR05517〉
  • Rear200/55R17 M/C 78V TL 〈MCR05519〉
FLTRX103 ROAD GLIDE SPECIAL (2013)
  • Front130/70B18 M/C 63H TL 〈MCS01399〉
  • Rear180/65B16 M/C 81H RFD TL 〈MCS01401〉
FXDB STREET BOB (2017-)
  • Front100/90B19 M/C 57H TL 〈MCS01395〉
  • Rear160/70B17 M/C 73V TL 〈MCS01396〉
FLHX STREETGLIDE (2014-)
  • Front130/60B19 M/C 61H TL 〈MCS01398〉
  • Rear180/65B16 M/C 81H RFD TL 〈MCS01401〉
FLHXS STREETGLIDE SPECIAL (2015-)
  • Front130/60B19 M/C 61H TL 〈MCS01398〉
  • Rear180/65B16 M/C 81H RFD TL 〈MCS01401〉
FLTRXS ROAD GLIDE SPECIAL SPECIAL(2015-)
  • Front130/60B19 M/C 61H TL 〈MCS01398〉
  • Rear180/65B16 M/C 81H RFD TL 〈MCS01401〉
FXDWG WIDE GLIDE (2017-)
  • Front80/90-21 M/C 54H RFD TL 〈MCS01406〉
  • Rear180/60B17 M/C 75V TL 〈MCS01403〉
FXSB BREAKOUT (2017-)
  • Front130/60B21 M/C 63H TL 〈MCS01400〉
  • Rear240/40R18 M/C 79V TL 〈MCR05518〉
1584cc
FLHRC ROAD KING CLASSIC (2009-)
  • Front130/90B16 M/C 67H TL 〈MCS01345〉
  • Rear180/65B16 M/C 81H RFD TL 〈MCS01401〉
FXDF FAT BOB (2007-)
  • Front130/90B16 M/C 67H TL 〈MCS01345〉
  • Rear180/70B16 M/C 77H TL 〈MCS01404〉
FLHRC ROAD KING CLASSIC (-2008)
  • Front130/90B16 M/C 73H RFD TL 〈MCS01339〉
  • Rear140/90B16 M/C 77H RFD TL 〈MCS01411〉
FLHT C/FLHT X (-2008)
  • Front130/90B16 M/C 73H RFD TL 〈MCS01339〉
  • Rear140/90B16 M/C 77H RFD TL 〈MCS01411〉
FLHT ELECTRAGLIDE (-2008)
  • Front130/90B16 M/C 73H RFD TL 〈MCS01339〉
  • Rear140/90B16 M/C 77H RFD TL 〈MCS01411〉
FLHTCU3-CVO ELECTRAGLIDE ULTRA CLASSIC (2007-)
  • Front130/90B16 M/C 73H RFD TL 〈MCS01339〉
  • Rear140/90B16 M/C 77H RFD TL 〈MCS01411〉
FLHTCU ELECTRAGLIDE ULTRA CLASSIC/SIDECAR (-2008)
  • Front130/90B16 M/C 73H RFD TL 〈MCS01339〉
  • Rear140/90B16 M/C 77H RFD TL 〈MCS01411〉
FLHX STREETGLIDE (-2007)
  • Front130/90B16 M/C 73H RFD TL 〈MCS01339〉
  • Rear140/90B16 M/C 77H RFD TL 〈MCS01411〉
FLSTC HERITAGE SOFTAIL CLASSIC (2009-2015)
  • Front130/90B16 M/C 73H RFD TL 〈MCS01339〉
  • Rear150/80B16 M/C 77H RFD TL 〈MCS01409〉
FLSTC HERITAGE SOFTAIL CLASSIC (2007-)
  • Front130/90B16 M/C 73H RFD TL 〈MCS01339〉
  • Rear140/90B16 M/C 77H RFD TL 〈MCS01411〉
FLSTN SOFTAIL DELUXE (2007-)
  • Front130/90B16 M/C 73H RFD TL 〈MCS01339〉
  • Rear140/90B16 M/C 77H RFD TL 〈MCS01411〉
FLTR ROAD GLIDE SPECIAL (2007-2008)
  • Front130/90B16 M/C 73H RFD TL 〈MCS01339〉
  • Rear140/90B16 M/C 77H RFD TL 〈MCS01411〉
FLHR (2009)
  • Front130/80B17 M/C 65H TL 〈MCS01397〉
  • Rear180/65B16 M/C 81H RFD TL 〈MCS01401〉
FLHRC4-CVO (2009-)
  • Front130/80B17 M/C 65H TL 〈MCS01397〉
  • Rear180/65B16 M/C 81H RFD TL 〈MCS01401〉
FLHT ELECTRAGLIDE (2009-)
  • Front130/80B17 M/C 65H TL 〈MCS01397〉
  • Rear180/65B16 M/C 81H RFD TL 〈MCS01401〉
FLHTCU ELECTRAGLIDE ULTRA CLASSIC/SIDECAR (2009-)
  • Front130/80B17 M/C 65H TL 〈MCS01397〉
  • Rear180/65B16 M/C 81H RFD TL 〈MCS01401〉
FLHX STREETGLIDE (2009-2012)
  • Front130/80B17 M/C 65H TL 〈MCS01397〉
  • Rear180/65B16 M/C 81H RFD TL 〈MCS01401〉
FLTR ROAD GLIDE SPECIAL (2009-)
  • Front130/80B17 M/C 65H TL 〈MCS01397〉
  • Rear180/65B16 M/C 81H RFD TL 〈MCS01401〉
FLSTF FAT BOY (2009-)
  • Front140/75R17 M/C 67V TL 〈MCR05517〉
  • Rear200/55R17 M/C 78V TL 〈MCR05519〉
FLSTFB FAT BOY LOW (2010-)
  • Front140/75R17 M/C 67V TL 〈MCR05517〉
  • Rear200/55R17 M/C 78V TL 〈MCR05519〉
FLTR3-CVO FACTORYCUSTOM・ROAD GLIDE SPECIAL (2009-)
  • Front130/70B18 M/C 63H TL 〈MCS01399〉
  • Rear180/55B18 M/C 80H RFD TL 〈MCS01402〉
FXDBB STREET BOB Limited(2015-)
  • Front100/90B19 M/C 57H TL 〈MCS01395〉
  • Rear160/70B17 M/C 73V TL 〈MCS01396〉
FXDBC STREET BOBSPECIAL(2016-)
  • Front100/90B19 M/C 57H TL 〈MCS01395〉
  • Rear160/70B17 M/C 73V TL 〈MCS01396〉
FXDWG WIDE GLIDE (2007-2009,2012-2016)
  • Front80/90-21 M/C 54H RFD TL 〈MCS01406〉
  • Rear180/60B17 M/C 75V TL 〈MCS01403〉
1800cc
FLSS SOFTAIL SLIM S (2016-)
  • Front130/90B16 M/C 73H RFD TL 〈MCS01339〉
  • Rear140/90B16 M/C 77H RFD TL 〈MCS01411〉
FLHTCUSE5-CVO ELECTRAGLIDE ULTRA CLASSIC (2010-)
  • Front130/80B17 M/C 65H TL 〈MCS01397〉
  • Rear180/65B16 M/C 81H RFD TL 〈MCS01401〉
FLSTFBS FAT BOY S (2016-)
  • Front140/75R17 M/C 67V TL 〈MCR05517〉
  • Rear200/55R17 M/C 78V TL 〈MCR05519〉
FXSE CVO PRO STREET BREAKOUT (2017-)
  • Front130/60B19 M/C 61H TL 〈MCS01398〉
  • Rear240/40R18 M/C 79V TL 〈MCR05518〉
FXSBSE2-CVO BREAKOUT
  • Front130/60B21 M/C 63H TL 〈MCS01400〉
  • Rear240/40R18 M/C 79V TL 〈MCR05518〉
1450cc
FLSTF FAT BOY (2003-)
  • Front130/90B16 M/C 73H RFD TL 〈MCS01339〉
  • Rear150/80B16 M/C 77H RFD TL 〈MCS01409〉
FXDWG WIDE GLIDE (2002-2004)
  • Front80/90-21 M/C 54H RFD TL 〈MCS01406〉
  • Rear150/80B16 M/C 77H RFD TL 〈MCS01409〉
FXDWG WIDE GLIDE (-2001)
  • Front80/90-21 M/C 54H RFD TL 〈MCS01406〉
  • Rear130/90B16 M/C 73H RFD TL 〈MCS01410〉
FXLR SERIES
  • Front80/90-21 M/C 54H RFD TL 〈MCS01406〉
  • Rear130/90B16 M/C 73H RFD TL 〈MCS01410〉
FXSTD SOFTAIL DEUCE/FXSTDI SOFTAIL DEUCE INJECTION
  • Front80/90-21 M/C 54H RFD TL 〈MCS01406〉
  • Rear160/70B17 M/C 73V TL 〈MCS01396〉
1200cc
XL1200C 1200CUSTOM (2011-)
  • Front130/90B16 M/C 73H RFD TL 〈MCS01339〉
  • Rear150/80B16 M/C 77H RFD TL 〈MCS01409〉
XL1200CA 1200CALimited (2013-)
  • Front130/90B16 M/C 73H RFD TL 〈MCS01339〉
  • Rear150/80B16 M/C 77H RFD TL 〈MCS01409〉
XL1200CB 1200CBLimited (2013-)
  • Front130/90B16 M/C 73H RFD TL 〈MCS01339〉
  • Rear150/80B16 M/C 77H RFD TL 〈MCS01409〉
XL1200X FORTY-EIGHT (2011-)
  • Front130/90B16 M/C 73H RFD TL 〈MCS01339〉
  • Rear150/80B16 M/C 77H RFD TL 〈MCS01409〉
XL1200C 1200CUSTOM (2007-)
  • Front80/90-21 M/C 54H RFD TL 〈MCS01406〉
  • Rear150/80B16 M/C 77H RFD TL 〈MCS01409〉
XL1200C 1200CUSTOM (2003-)
  • Front80/90-21 M/C 54H RFD TL 〈MCS01406〉
  • Rear150/80B16 M/C 77H RFD TL 〈MCS01409〉
XL1200C 1200CUSTOM (-2002)
  • Front80/90-21 M/C 54H RFD TL 〈MCS01406〉
  • Rear130/90B16 M/C 73H RFD TL 〈MCS01410〉
XL1200V SEVENTY-TWO
  • Front80/90-21 M/C 54H RFD TL 〈MCS01406〉
  • Rear150/80B16 M/C 77H RFD TL 〈MCS01409〉
1868cc
FLHTKSE CVO Limited
  • Front130/80B17 M/C 65H TL 〈MCS01397〉
  • Rear180/65B16 M/C 81H RFD TL 〈MCS01401〉
FLHXSE CVO STREETGLIDE (2017-)
  • Front130/60B19 M/C 61H TL 〈MCS01398〉
  • Rear180/55B18 M/C 80H RFD TL 〈MCS01402〉
1745cc
FLHR ROAD KING
  • Front130/80B17 M/C 65H TL 〈MCS01397〉
  • Rear180/65B16 M/C 81H RFD TL 〈MCS01401〉
FLHTK ULTRA Limited/FLHTKL ULTRALimited LOW (2017-)
  • Front130/80B17 M/C 65H TL 〈MCS01397〉
  • Rear180/65B16 M/C 81H RFD TL 〈MCS01401〉
883cc
XL883L SUPERLOW (2011-)
  • Front120/70ZR18 M/C (59W) TL 〈MCR05516〉
  • Rear150/60ZR17 M/C (66W) TL 〈MCR05520〉
XL883N IRON 883/XL883R (2013-)
  • Front100/90B19 M/C 57H TL 〈MCS01395〉
  • Rear150/80B16 M/C 77H RFD TL 〈MCS01409〉
XL883C (2007-)
  • Front80/90-21 M/C 54H RFD TL 〈MCS01406〉
  • Rear150/80B16 M/C 77H RFD TL 〈MCS01409〉
XL883C (-2002)
  • Front80/90-21 M/C 54H RFD TL 〈MCS01406〉
  • Rear130/90B16 M/C 73H RFD TL 〈MCS01410〉
1246cc
VRSCDX NIGHT ROD SPECIAL (2007-)
  • Front120/70ZR19 M/C (60W) TL 〈MCR05515〉
  • Rear240/40R18 M/C 79V TL 〈MCR05518〉
VRSCF V-Rod MUSCLE (2009-)
  • Front120/70ZR19 M/C (60W) TL 〈MCR05515〉
  • Rear240/40R18 M/C 79V TL 〈MCR05518〉

Support
